How Are Peptides Manufactured? Complete Guide to Peptide Synthesis & Quality Control

Peptides are used throughout modern biological and pharmaceutical research, but the finished material inside a research vial represents the end result of a complex manufacturing process. Before a peptide reaches a laboratory, its amino acid sequence must be assembled, unwanted by-products must be removed, the molecular identity must be verified, and the finished material must be packaged and documented appropriately.

Understanding how peptides are manufactured can help researchers make better decisions when evaluating research peptide suppliers. A product labeled with a particular peptide sequence and purity percentage provides only limited information unless researchers also understand how the material was synthesized, purified, tested, and traced back to its production batch.

Modern synthetic peptide manufacturing commonly relies on solid-phase peptide synthesis (SPPS). Developed by Nobel Prize-winning chemist Bruce Merrifield, SPPS transformed peptide chemistry by allowing amino acids to be assembled sequentially while attached to an insoluble support. The technique has since evolved into highly automated manufacturing processes capable of producing a wide range of research and pharmaceutical peptides. [oai_citation:1‡PubMed](https://pubmed.ncbi.nlm.nih.gov/18213693/?utm_source=chatgpt.com)

However, synthesis is only one part of peptide manufacturing. Purification, analytical characterization, formulation, lyophilization, storage, packaging, and quality control all contribute to the characteristics of the final material.

In this guide, we'll explain how peptides are made step by step, how solid-phase peptide synthesis works, why purification is necessary, how HPLC and mass spectrometry are used to evaluate peptide quality, and what researchers should look for when purchasing research-grade peptides.

If you're new to peptide science, you may also want to begin with our guide to What Are Research Peptides?. Researchers evaluating suppliers can also read our Complete Peptide Buying Guide for Researchers.

---

What Are Peptides?

Peptides are molecules composed of amino acids connected through peptide bonds. Their biological functions vary widely, and naturally occurring peptides participate in processes including cellular signaling, hormone regulation, immune responses, metabolism, and tissue biology.

Synthetic peptides can reproduce naturally occurring sequences or be designed with modifications intended to investigate specific biological properties.

In research environments, synthetic peptides can therefore serve as experimental tools for studying receptors, enzymes, signaling pathways, cellular responses, and physiological processes.

The chemical synthesis of peptides is different from simply mixing individual amino acids together. The amino acids must be connected in a precise sequence, while unwanted reactions and side products must be controlled throughout the process.

This is one reason peptide manufacturing requires specialized chemistry and analytical methods.

---

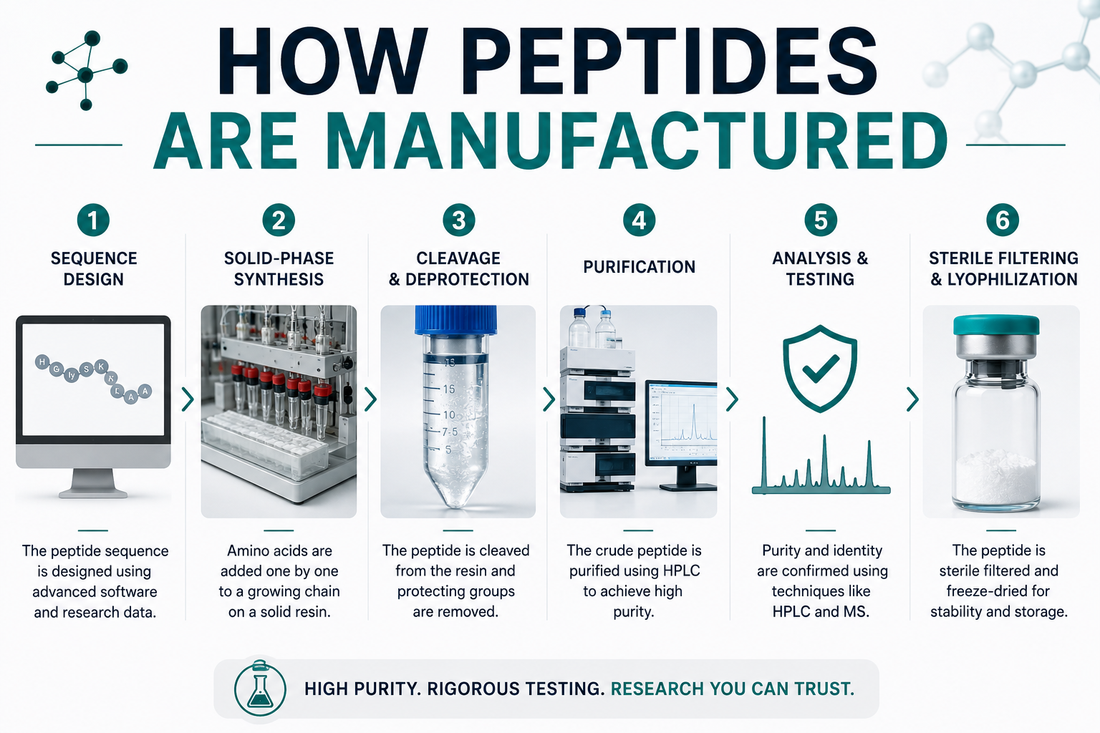

How Are Peptides Manufactured?

Although manufacturing processes vary depending on the specific peptide, synthetic peptide production can generally be divided into several major stages:

1. Sequence and synthesis planning
2. Resin loading and amino acid assembly
3. Repeated deprotection and coupling
4. Cleavage and final deprotection
5. Crude peptide recovery
6. Purification
7. Analytical characterization
8. Lyophilization or formulation
9. Packaging and labeling
10. Batch release and traceability

The exact sequence of operations depends on the peptide. Short, relatively simple peptides may require fewer processing steps than longer or structurally modified sequences. Some peptides can also require additional chemistry, such as cyclization, disulfide-bond formation, terminal modifications, or other post-synthetic transformations.

Modern peptide synthesis has benefited substantially from automation. Automated synthesizers can perform repetitive coupling and washing operations with controlled reaction conditions, improving throughput and reproducibility. [oai_citation:2‡PubMed](https://pubmed.ncbi.nlm.nih.gov/31879919/?utm_source=chatgpt.com)

---

Step 1: Designing the Peptide Sequence

Peptide manufacturing begins with defining exactly what molecule needs to be produced.

The amino acid sequence determines the primary structure of the peptide and is therefore one of the most important specifications associated with the finished material.

Before synthesis begins, manufacturers may need to determine:

• The exact amino acid sequence
• Peptide length
• Terminal modifications
• Protected functional groups
• Potential disulfide bonds
• Cyclization requirements
• Required purity specification
• Target production scale
• Appropriate synthesis strategy

Sequence complexity can have a significant impact on manufacturing difficulty. Longer sequences can accumulate a greater number of synthesis-related impurities because each additional coupling step creates another opportunity for incomplete reactions or side reactions.

This is one reason peptide manufacturing is not simply a matter of assembling amino acids and collecting the final product.

---

Step 2: Solid-Phase Peptide Synthesis (SPPS)

Solid-phase peptide synthesis, commonly abbreviated as SPPS, is the dominant chemical approach used for synthesizing many peptides.

The technique was developed by Bruce Merrifield in the early 1960s. Merrifield's approach solved an important practical problem in peptide chemistry by attaching the growing peptide chain to an insoluble solid support. This allowed excess reagents and reaction by-products to be removed through washing while the peptide remained attached to the resin. [oai_citation:3‡PubMed](https://pubmed.ncbi.nlm.nih.gov/18213693/?utm_source=chatgpt.com)

The basic concept is relatively straightforward:

The process is repeated until the desired amino acid sequence has been assembled.

Modern SPPS commonly uses protected amino acids and automated equipment. A widely used strategy is the Fmoc/tBu approach, which uses 9-fluorenylmethoxycarbonyl (Fmoc) protection for the amino terminus and acid-labile protecting groups for selected side chains. [oai_citation:4‡PubMed](https://pubmed.ncbi.nlm.nih.gov/16946453/?otool=icznmelib&utm_source=chatgpt.com)

---

How Does Solid-Phase Peptide Synthesis Work?

In SPPS, the first amino acid is attached to a solid resin. Subsequent amino acids are then added one at a time.

Each synthesis cycle generally involves several fundamental operations:

1. Deprotection: The reactive site on the growing peptide is exposed.
2. Washing: Residual reagents and by-products are removed.
3. Coupling: The next protected amino acid is chemically linked to the growing chain.
4. Washing: Excess coupling reagents and reaction products are removed.
5. Repetition: The cycle continues until the desired sequence is complete.

The solid support makes these repeated washing and separation operations practical because the growing peptide remains attached to the resin while soluble materials can be removed.

Modern automated systems can perform many of these operations under programmed conditions, allowing manufacturers to produce multiple peptide sequences or larger quantities with greater process control. [oai_citation:5‡PubMed](https://pubmed.ncbi.nlm.nih.gov/31879919/?utm_source=chatgpt.com)

---

Why Are Amino Acids Protected During Synthesis?

Amino acids contain multiple chemical groups that can potentially participate in reactions. During peptide synthesis, manufacturers need to control which functional groups react and which remain inactive.

Protecting groups are therefore used to prevent unwanted reactions.

In a typical SPPS strategy, the amino group involved in the next peptide-bond-forming reaction is selectively exposed while other reactive groups remain protected.

This controlled reactivity is essential for building the intended sequence rather than producing a mixture of incorrectly connected molecules.

Modern peptide chemistry uses different protection strategies depending on the sequence, desired modifications, and synthesis conditions.

---

Step 3: Repeating the Coupling Cycle

The coupling cycle is repeated for every amino acid that must be added to the growing chain.

For a relatively short peptide, this may involve a manageable number of cycles. As peptide length increases, however, the number of chemical operations also increases.

This creates an important manufacturing challenge: small inefficiencies can accumulate over many synthesis cycles.

If one coupling step does not proceed completely, an incomplete sequence can remain attached to the resin and potentially continue through subsequent cycles. The resulting mixture may therefore contain the desired full-length peptide along with deletion sequences and other related impurities.

This is one of the fundamental reasons purification and analytical testing are so important in peptide manufacturing.

Research literature on modern SPPS describes challenges including incomplete coupling, aggregation, side reactions, difficult sequences, and the need for optimized synthesis strategies. [oai_citation:6‡PubMed](https://pubmed.ncbi.nlm.nih.gov/16946453/?otool=icznmelib&utm_source=chatgpt.com)

---

What Happens During Peptide Synthesis?

A simplified example helps illustrate the process.

Imagine a hypothetical peptide containing five amino acids:

The manufacturer does not normally assemble the complete five-amino-acid chain in one chemical reaction. Instead, the sequence is built progressively on the solid support.

At each stage, the appropriate amino acid is introduced, the desired coupling reaction is performed, and the material is washed before the next cycle begins.

The same fundamental concept applies to considerably longer peptides, although longer sequences generally present greater synthesis and purification challenges.

---

Step 4: Cleavage From the Resin

Once the complete peptide sequence has been assembled, the finished chain must be removed from the solid support.

This process is known as cleavage.

During cleavage, chemical conditions are used to break the bond connecting the peptide to the resin. Depending on the synthesis strategy, the same processing stage can also remove protecting groups that were used to control amino acid reactivity during synthesis.

The result is a crude peptide preparation containing the desired peptide together with a range of other components.

These may include:

• Incomplete peptide sequences
• Deletion sequences
• Side-reaction products
• Oxidized or otherwise modified forms
• Residual reagents
• Protecting-group-related by-products
• Other process-related impurities

The crude material is therefore not equivalent to the purified research peptide.

This distinction is critical when evaluating peptide manufacturing. Synthesis creates the peptide mixture; purification and analytical characterization determine what can ultimately be isolated and verified.

---

---

Step 5: Purifying the Peptide

After cleavage and deprotection, the resulting crude material contains the target peptide along with synthesis-related impurities. Purification is therefore one of the most important stages of peptide manufacturing.

The objective is to separate the desired peptide from compounds that were generated during synthesis or introduced during downstream processing.

The purification strategy depends on the characteristics of the peptide, including its sequence, length, hydrophobicity, charge, solubility, modifications, and the required purity specification.

For many synthetic peptides, chromatography is the principal purification technology.

---

Preparative HPLC

High-Performance Liquid Chromatography (HPLC) can be used at both the preparative and analytical stages of peptide manufacturing.

During preparative HPLC, the crude peptide mixture is passed through a chromatography column under controlled conditions. Different molecular species interact with the stationary phase to different degrees, causing them to elute at different times.

The desired peptide can then be collected from the appropriate fraction.

This process can substantially reduce the concentration of synthesis-related impurities and produce a peptide preparation with a much higher level of chromatographic purity.

Reversed-phase HPLC is particularly common in peptide purification because many peptides can be separated effectively according to differences in hydrophobicity.

However, no purification method is universally optimal. Depending on the peptide, manufacturers may use different chromatographic approaches or multiple purification stages.

---

Why Are Longer Peptides More Difficult to Manufacture?

Peptide length can significantly affect manufacturing complexity.

In a stepwise synthesis process, each additional amino acid requires another series of chemical operations. Even when individual coupling reactions are highly efficient, small amounts of incomplete product can accumulate as the number of synthesis cycles increases.

Longer sequences can therefore produce increasingly complex mixtures containing the desired full-length peptide alongside deletion sequences and other related impurities.

Certain amino acid sequences can also present additional challenges because of aggregation, steric effects, difficult couplings, or sequence-specific side reactions.

This means that two peptides with the same nominal quantity may require very different manufacturing processes and purification strategies.

The difficulty of producing a peptide is therefore influenced by more than its molecular weight alone.

---

Purity vs. Yield

Peptide manufacturing often involves a practical balance between purity and recovery.

Additional purification can remove more impurities, but every purification step can also result in some loss of the desired peptide.

Manufacturers therefore need to develop purification processes that achieve the required quality while maintaining acceptable recovery.

For research applications, the appropriate specification depends on the intended experimental use. A highly purified peptide may be particularly important when researchers are studying sensitive biological pathways or attempting to reproduce published experimental conditions.

Importantly, a stated purity percentage should always be interpreted in the context of the analytical method used to generate it.

---

Step 6: Analytical HPLC Testing

After purification, the peptide can undergo analytical testing to determine whether it meets the required specifications.

One of the most commonly used techniques is analytical HPLC.

Unlike preparative HPLC, which is primarily used to separate and collect material, analytical HPLC is used to characterize the composition of a sample.

A chromatographic run generates a chromatogram containing peaks corresponding to components detected under the selected analytical conditions.

The primary peak associated with the target peptide can be compared with other detected components to estimate chromatographic purity.

For this reason, researchers should avoid interpreting a reported HPLC purity percentage as proof of molecular identity.

---

Step 7: Mass Spectrometry and Peptide Identity

Mass Spectrometry (MS) is another important analytical technique used in peptide characterization.

Mass spectrometry measures the mass-to-charge ratio of ions generated from the sample. The resulting data can provide information about the molecular mass of the detected species.

For peptide characterization, the measured molecular mass can be compared with the theoretical molecular weight expected for the intended sequence.

This provides evidence supporting the identity of the synthesized material.

Mass spectrometry can also help identify unexpected molecular species or modifications that differ from the expected target.

The exact analytical workflow depends on the peptide and the laboratory performing the testing. More advanced characterization can involve techniques such as tandem mass spectrometry, which can provide additional structural information.

Researchers can explore the peer-reviewed literature on peptide characterization using mass spectrometry for further technical information.

---

HPLC vs. Mass Spectrometry: What's the Difference?

HPLC and Mass Spectrometry answer different analytical questions, which is why they are frequently used together.

Test	Primary Purpose	What It Can Help Determine
Analytical HPLC	Chromatographic separation	Relative chromatographic purity and presence of detectable components
Mass Spectrometry	Molecular mass analysis	Evidence supporting molecular identity and detection of molecular variants
HPLC + MS	Complementary characterization	A broader assessment of purity and molecular identity

Using multiple analytical techniques provides researchers with more information about a research material than relying on a single measurement.

---

Step 8: Additional Peptide Quality Testing

HPLC and mass spectrometry are important analytical tools, but peptide quality control can involve additional tests depending on the material and intended application.

Potential analytical considerations include:

• Water content: Helps characterize the amount of residual water in a material.
• Residual solvents: Evaluates whether process-related solvent residues remain within specified limits.
• Counterion or salt content: Relevant for peptides supplied in specific salt forms.
• Elemental or trace analysis: May be used where relevant to the formulation or manufacturing process.
• Appearance: Visual examination can identify obvious physical abnormalities.
• pH: Relevant when a peptide is supplied or tested in solution.

Not every peptide requires every analytical test. The appropriate testing program depends on the characteristics of the material, the manufacturing process, the applicable specifications, and the intended research use.

Researchers should therefore evaluate the actual analytical documentation available for a particular production batch rather than assuming that every supplier performs the same testing.

---

What Is a Certificate of Analysis?

A Certificate of Analysis (COA) is a quality document summarizing analytical testing performed on a particular batch of material.

For research peptides, a COA may contain information such as:

• Product name
• Batch or lot number
• Testing date
• Purity result
• Identity result
• Analytical methods
• Molecular weight
• Storage information
• Additional specifications where applicable

A batch-specific COA is particularly useful because it connects the reported analytical results to a defined production lot.

Researchers should compare the lot number on the material they receive with the lot number listed on the corresponding analytical documentation.

For a broader discussion of how to evaluate peptide suppliers and COAs, see our Complete Peptide Buying Guide for Researchers.

---

Why Batch Traceability Matters

Batch traceability allows a manufacturer and researcher to connect a particular vial or container to its production history.

A traceable batch can be associated with:

• Manufacturing records
• Raw-material information
• Purification records
• Analytical testing
• Quality-control documentation
• Packaging records

For researchers, this information can become valuable when experiments are repeated over time.

If a laboratory observes a difference between experimental runs, knowing the exact production lot used in each experiment can help identify potential sources of variability.

Batch traceability is therefore an important component of good research documentation.

---

Step 9: Lyophilization — Freeze-Drying Peptides

Following purification and characterization, many peptides are converted into a dry powder through a process called lyophilization, commonly known as freeze-drying.

Lyophilization removes water from a frozen material under reduced pressure, allowing ice to transition into vapor without passing through the liquid phase under the primary drying conditions.

The resulting dry material can offer advantages for storage and transportation because removing water can reduce some pathways of chemical and physical degradation.

However, lyophilization does not make a peptide indefinitely stable. Stability depends on the peptide sequence, formulation, residual moisture, storage temperature, container closure system, and other factors.

---

Why Are Research Peptides Often Supplied as Lyophilized Powders?

A dry, lyophilized peptide is often easier to store and transport than an aqueous preparation.

The process can reduce the amount of water available for certain degradation reactions and allows the material to remain in a compact, stable form until it is required for research.

Once received, researchers should follow the storage requirements provided for the specific compound.

Our guide on How to Store Research Peptides provides additional information about storage and stability considerations.

---

Step 10: Packaging Research Peptides

After manufacturing and quality control are completed, the peptide must be packaged in an appropriate container.

Packaging serves several purposes:

• Protecting the material from environmental exposure
• Maintaining container integrity
• Supporting storage stability
• Providing identification information
• Enabling batch traceability

Research peptide vials are commonly labeled with information such as the compound name, quantity, lot or batch number, and relevant storage information.

The exact packaging configuration depends on the peptide, quantity, intended application, and quality requirements.

Proper packaging is not simply a presentation issue. The container and closure system form part of the overall strategy for protecting the material after manufacture.

---

From Amino Acids to Finished Research Peptide

The entire manufacturing process can be summarized as a sequence of controlled stages:

Every stage contributes to the final characteristics of the research material.

A peptide with a precisely defined sequence can still require extensive purification. A highly purified material still needs identity confirmation. A properly characterized peptide still needs appropriate storage and packaging to maintain its condition after manufacture.

Quality should therefore be viewed as a complete manufacturing and analytical process rather than a single number printed on a product page.

---

---

What Factors Affect Peptide Manufacturing Quality?

Not all peptides are equally difficult to manufacture. The complexity of a peptide's sequence, its physical and chemical properties, the desired purity specification, production scale, and downstream processing requirements can all influence the manufacturing process.

For researchers, understanding these variables provides useful context when comparing peptide suppliers. A longer or more complex peptide may require a substantially different synthesis and purification strategy than a short, relatively simple sequence.

Peptide Length

As the number of amino acids increases, the number of synthesis cycles also increases. Even highly efficient coupling reactions can produce small amounts of incomplete sequences, which can accumulate as the peptide becomes longer.

Longer peptides may therefore require more extensive purification and analytical characterization.

Sequence Complexity

Some sequences are inherently more challenging to synthesize because of their chemical or physical properties.

For example, certain sequences can be prone to aggregation on the resin, while others may be more susceptible to side reactions or incomplete coupling.

Manufacturers may adjust reaction conditions, coupling strategies, solvents, protecting groups, or purification methods to address these challenges.

Post-Synthetic Modifications

Some research peptides require additional chemical modifications beyond straightforward linear sequence assembly.

Examples can include:

• Disulfide-bond formation
• Terminal modifications
• Cyclization
• Lipidation
• Fluorescent labeling
• Other chemical modifications

These modifications can introduce additional manufacturing and analytical requirements because the manufacturer must verify not only the peptide sequence but also the intended structural modification.

Production Scale

Peptides can be produced at different scales depending on the application.

The equipment, purification strategy, reaction volumes, and process controls used for a small research batch may differ from those required for larger-scale production.

Scaling a peptide synthesis process is therefore not simply a matter of using larger containers. Reaction efficiency, heat transfer, mixing, purification capacity, and downstream processing can all change as production scale increases.

---

Research-Grade vs. Pharmaceutical Peptide Manufacturing

The term "research grade" should not be confused with pharmaceutical manufacturing standards.

Research peptides are produced for laboratory and analytical applications and can be manufactured under specifications appropriate to their intended research use. Pharmaceutical products intended for human administration are subject to substantially different regulatory, manufacturing, quality, and validation requirements.

Pharmaceutical manufacturing may involve extensive controls covering areas such as:

• Good Manufacturing Practice (GMP)
• Validated manufacturing processes
• Raw-material qualification
• Environmental monitoring
• Process validation
• Validated analytical methods
• Stability programs
• Batch-release procedures
• Regulatory oversight

Researchers should therefore avoid interpreting a commercial phrase such as "research grade" as equivalent to pharmaceutical or clinical-grade material.

The appropriate manufacturing standard depends on the intended application and applicable regulatory framework.

The U.S. Food & Drug Administration's pharmaceutical quality resources provide additional information about pharmaceutical quality systems and manufacturing expectations.

---

What Is GMP Manufacturing?

Good Manufacturing Practice (GMP) refers to quality-system requirements designed to help ensure that medicinal products are consistently produced and controlled according to appropriate standards.

GMP is much broader than simply testing the finished product.

A GMP quality system can encompass:

• Personnel and training
• Facility design
• Equipment qualification
• Raw-material controls
• Manufacturing procedures
• Documentation
• Environmental controls
• Quality-control testing
• Deviation management
• Corrective and preventive actions
• Batch release

For pharmaceutical researchers, GMP status can be highly relevant when material is intended for regulated development programs. For general laboratory research, however, researchers should still evaluate the actual specifications, testing, and documentation associated with the material rather than relying on a single manufacturing label.

The International Council for Harmonisation (ICH) quality guidelines provide internationally recognized guidance relevant to pharmaceutical development and quality.

---

Why Raw Materials Matter in Peptide Manufacturing

The quality of a finished peptide is influenced by the materials used throughout the manufacturing process.

Peptide synthesis requires amino acids, coupling reagents, solvents, protecting-group reagents, resin, and other processing materials. Their quality and consistency can affect the synthesis and the impurity profile of the resulting crude material.

Manufacturers therefore need appropriate controls around raw-material sourcing, storage, identification, and use.

This is particularly important for repeated production because variability in raw materials can potentially contribute to differences between manufacturing batches.

For researchers purchasing finished material, the practical implication is simple: batch consistency depends on the entire manufacturing process, not merely the final purification step.

---

Why Purification Is Critical for Research Peptides

The goal of peptide purification is not simply to make a product look cleaner. It is to separate the desired molecular species from substances that could interfere with research.

Synthesis-related impurities can include:

• Deletion sequences
• Incomplete full-length products
• Oxidized species
• Epimerized or otherwise altered products
• Truncated sequences
• Residual synthesis reagents
• Other process-related compounds

The precise impurity profile varies depending on the peptide sequence and synthesis chemistry.

For experiments involving sensitive biological systems, uncontrolled impurities could potentially introduce additional variables. Researchers therefore benefit from knowing how the material was purified and how the final purity was analytically assessed.

---

Can HPLC Alone Prove Peptide Quality?

HPLC is an important analytical technique, but HPLC alone does not provide a complete picture of peptide quality.

A chromatographic purity result primarily describes the sample under the specific HPLC method used.

It does not necessarily answer every question a researcher may have about:

• Molecular identity
• Sequence confirmation
• Structural modifications
• Residual solvents
• Water content
• Counterions
• Trace contaminants

This is why a comprehensive quality-control program may use multiple analytical techniques.

For many research peptides, HPLC and Mass Spectrometry provide complementary information about chromatographic purity and molecular identity.

Researchers should therefore ask not only "What is the purity?" but also "How was the purity measured, and how was the identity verified?"

---

How to Read a Peptide Certificate of Analysis

A Certificate of Analysis can contain valuable information, but researchers should know what to look for.

1. Product Identification

The COA should clearly identify the compound being tested.

2. Batch or Lot Number

The batch number should correspond to the material received by the researcher.

3. Testing Date

The date of analysis helps establish when the reported testing was performed.

4. Analytical Method

Researchers should look for information identifying the analytical method used to generate the reported result.

5. Purity Result

The report may provide a chromatographic purity percentage based on the relevant HPLC method.

6. Identity Result

Mass Spectrometry or another appropriate analytical technique may be used to support molecular identity.

7. Specification vs. Result

Where applicable, researchers should distinguish between the required specification and the actual analytical result obtained for the batch.

This can provide more useful information than a generic statement such as "99% pure" on a product page.

---

How Researchers Should Compare Peptide Suppliers

When purchasing research peptides, the lowest advertised price should not necessarily be the primary selection criterion.

A better approach is to compare suppliers across several quality and service categories.

Factor	What Researchers Should Look For
Manufacturing	Clear information about synthesis and manufacturing processes
Purity	Clearly defined analytical purity specification
Identity	Appropriate molecular identity testing
COA	Batch-specific analytical documentation
Traceability	Lot or batch identification on the supplied material
Storage	Clear compound-specific storage information
Support	Responsive access to technical and product documentation

For Canadian researchers, domestic fulfillment can also provide practical advantages such as simpler shipping logistics and fewer international customs considerations. These logistical factors should complement—not replace—an evaluation of manufacturing and analytical quality.

Our Complete Peptide Buying Guide for Researchers provides a more detailed supplier-evaluation framework.

---

How Peptide Manufacturing Affects Research Reproducibility

Reproducibility is one of the central goals of scientific research.

If two experiments are performed using material with substantially different impurity profiles, concentration, identity, or stability characteristics, differences in experimental results can become difficult to interpret.

This is why researchers should document the characteristics of the material used in an experiment whenever appropriate.

Useful records can include:

• Compound name
• Peptide sequence where relevant
• Supplier
• Production batch or lot number
• Purity specification
• Analytical documentation
• Storage conditions
• Preparation date
• Relevant experimental conditions

Good material documentation helps researchers distinguish biological variability from potential differences in research materials.

---

What Does "99% Pure" Mean for a Research Peptide?

A purity specification such as ≥99% is commonly used by research peptide suppliers, but researchers should understand what the number actually represents.

In many cases, the percentage refers to chromatographic purity determined using an HPLC method.

That means the result should be interpreted in relation to the analytical method, chromatographic conditions, detection system, and calculation approach used by the testing laboratory.

It does not necessarily mean that exactly 99% of every molecule in the vial has been independently proven to have the intended structure.

This is another reason why combining purity testing with molecular identity testing provides a more informative characterization of the research material.

---

Why Peptide Manufacturing Documentation Matters

A transparent manufacturing record helps connect the finished research material to the processes and testing used to produce it.

For researchers, useful documentation can include:

• Product specifications
• Batch information
• Certificates of Analysis
• Storage recommendations
• Analytical methodology
• Manufacturing information where available
• Technical documentation

Suppliers that make these materials accessible allow researchers to make purchasing decisions based on documented information rather than marketing claims alone.

This principle is particularly important when sourcing peptides for repeated experiments or long-term research programs.

---

Frequently Asked Questions About Peptide Manufacturing

How are research peptides made?

Most synthetic research peptides are produced using solid-phase peptide synthesis (SPPS). Protected amino acids are assembled sequentially on a solid resin, after which the completed peptide is cleaved, deprotected, purified, analytically characterized, and typically formulated or lyophilized before packaging.

What is solid-phase peptide synthesis?

Solid-phase peptide synthesis is a chemical method in which a growing peptide chain remains attached to an insoluble solid support while amino acids are added sequentially. The technique allows excess reagents and reaction by-products to be removed through washing between synthesis cycles.

How long does it take to manufacture a peptide?

Manufacturing time varies substantially depending on peptide length, sequence complexity, production scale, purification requirements, analytical testing, and other processing requirements. There is therefore no single manufacturing timeline that applies to every peptide.

Why are peptides purified after synthesis?

Crude peptide material can contain incomplete sequences, deletion products, modified peptides, and residual process-related substances. Purification separates the desired peptide from these components and allows the manufacturer to obtain material meeting the required purity specification.

How is peptide purity tested?

Analytical HPLC is commonly used to evaluate chromatographic purity. The method separates components of a sample and allows the relative contribution of detected peaks to be assessed. The exact methodology and interpretation depend on the analytical procedure used.

How is peptide identity verified?

Mass Spectrometry is commonly used to support molecular identity by measuring molecular mass and comparing the observed result with the expected value for the target compound. Additional analytical techniques may be used depending on the peptide and required characterization.

What is the difference between HPLC and Mass Spectrometry?

HPLC primarily separates and characterizes components according to their chromatographic behavior, while Mass Spectrometry provides information about molecular mass. The two techniques therefore provide complementary information when characterizing a peptide.

Why are peptides often freeze-dried?

Lyophilization, or freeze-drying, removes water under controlled conditions and can produce a dry peptide preparation that is more convenient for storage and transportation than many liquid formulations. Stability still depends on the individual peptide and storage conditions.

What is a peptide COA?

A Certificate of Analysis is a document summarizing analytical testing performed on a particular production batch. It can include information such as the compound identity, lot number, purity result, identity testing, testing date, and analytical methodology.

Are research-grade peptides the same as pharmaceutical-grade peptides?

No. Research-grade material is intended for laboratory or analytical research, while pharmaceutical-grade materials are manufactured under regulatory and quality systems appropriate for medicinal products. Researchers should not assume that a research-grade designation indicates suitability for human or veterinary administration.

---

---

How to Choose a Research Peptide Supplier

Understanding how peptides are manufactured makes it easier to evaluate suppliers objectively. Rather than focusing only on price or the purity percentage displayed on a product page, researchers should consider the entire quality-control process.

A reliable research peptide supplier should be able to provide clear information about the material being supplied and appropriate documentation to support its specifications.

Look for Clear Product Specifications

Product pages should clearly identify the compound and provide relevant technical information where applicable. Depending on the peptide, this may include molecular weight, molecular formula, amino acid sequence, purity specification, storage recommendations, and quantity per vial.

Clear specifications reduce ambiguity and make it easier for researchers to document the material used in an experiment.

Look for Batch-Specific Testing

A general statement such as "99% purity" provides less information than analytical documentation associated with a specific production lot.

Researchers should look for batch-specific testing and verify that the lot number on the Certificate of Analysis corresponds with the material received.

Look for Multiple Analytical Methods

HPLC and Mass Spectrometry provide complementary information. HPLC can be used to evaluate chromatographic purity, while Mass Spectrometry can support molecular identity.

Additional testing may be appropriate depending on the peptide and its intended research application.

Look for Lot Traceability

Lot numbers allow research material to be connected with manufacturing and analytical records. This becomes particularly useful when researchers conduct experiments over extended periods or compare results between different production batches.

Look for Transparent Documentation

A supplier should provide useful information about storage, handling, product specifications, analytical testing, and applicable research-use limitations.

For Canadian researchers comparing suppliers, our Complete Peptide Buying Guide for Researchers provides a more comprehensive checklist.

---

How Diamond Peptides Approaches Research Peptide Quality

At Diamond Peptides, our approach is centered on providing researchers with clearly identified research materials supported by appropriate product information and analytical documentation.

Our research peptide catalog includes compounds used in several areas of peptide research, including metabolic, regenerative, mitochondrial, endocrine, and cellular biology.

Researchers can explore individual product pages for additional specifications and research information, including:

• MOTS-c
• SS-31
• GHK-Cu
• Retatrutide
• Tesamorelin
• BPC-157
• TB-500

For researchers interested in understanding peptide quality before purchasing, we also recommend reviewing our research peptide buying guide.

---

Peptide Manufacturing: From Chemistry to Research Material

The production of a synthetic peptide involves considerably more than simply combining amino acids.

A typical manufacturing workflow begins with sequence planning and solid-phase peptide synthesis. Protected amino acids are then coupled sequentially to a growing peptide chain attached to a solid resin.

Once synthesis is complete, the peptide is cleaved from the resin and deprotected. The resulting crude material contains the target peptide along with synthesis-related impurities, so purification is performed to isolate the desired molecular species.

The purified material is then analytically characterized. HPLC can provide information about chromatographic purity, while Mass Spectrometry can provide information supporting molecular identity.

Depending on the peptide and formulation, the material may subsequently undergo lyophilization before being packaged and assigned a batch or lot number.

The final product is therefore the result of a chain of interconnected processes:

Each stage can influence the final characteristics of the research material. This is why researchers should evaluate peptide quality as a complete manufacturing and analytical process rather than relying on a single specification.

---

Key Takeaways: How Peptides Are Manufactured

The most important points to remember are:

• Most synthetic research peptides are produced using SPPS. Solid-phase peptide synthesis allows amino acids to be assembled sequentially into a defined peptide chain.
• Each synthesis cycle must be carefully controlled. Incomplete coupling and side reactions can generate related impurities.
• Crude peptide is not finished peptide. The material produced immediately after synthesis contains the target compound alongside synthesis-related impurities.
• Purification is essential. Chromatographic techniques such as preparative HPLC are commonly used to isolate the desired peptide.
• Purity and identity are different questions. Analytical HPLC and Mass Spectrometry provide complementary information about research material.
• Lyophilization can improve handling and storage. Many peptides are supplied as freeze-dried powders, although stability remains compound-specific.
• Batch traceability matters. Lot numbers connect research material to manufacturing and analytical records.
• Research grade is not pharmaceutical grade. Researchers should understand the intended use and applicable quality requirements for the material they purchase.
• Documentation supports reproducibility. Recording supplier, lot number, analytical information, and storage conditions can help researchers maintain consistent experimental records.

---

Frequently Asked Questions About Peptide Manufacturing

How are peptides manufactured?

Most synthetic peptides are manufactured using solid-phase peptide synthesis (SPPS). Amino acids are added sequentially to a growing peptide chain attached to a solid resin. The completed peptide is then cleaved and deprotected, purified, analytically tested, and commonly lyophilized before packaging.

What is SPPS in peptide synthesis?

SPPS stands for Solid-Phase Peptide Synthesis. It is a method in which the growing peptide chain remains attached to a solid support while individual amino acids are added sequentially. The solid support allows excess reagents and reaction by-products to be removed through washing between synthesis cycles.

What happens after peptide synthesis?

After the desired sequence has been assembled, the peptide is cleaved from the resin and protective groups are removed. The resulting crude material is then purified to separate the target peptide from synthesis-related impurities before analytical characterization.

How are peptides purified?

Peptides can be purified using chromatography. Preparative HPLC is a commonly used approach for separating the desired peptide from related impurities and collecting purified fractions. The exact purification strategy depends on the peptide's chemical properties and required specification.

How is peptide purity measured?

Analytical HPLC is commonly used to assess chromatographic purity. A chromatogram separates detectable components and allows the relative contribution of the principal peak and other peaks to be evaluated according to the analytical method.

How is peptide identity confirmed?

Mass Spectrometry is commonly used to support peptide identity by measuring molecular mass and comparing the observed result with the expected molecular weight. Other analytical techniques may be used when additional structural information is required.

Why are peptides freeze-dried?

Freeze-drying, or lyophilization, removes water under controlled conditions and produces a dry material that can be convenient for storage and transportation. The stability of a lyophilized peptide remains dependent on the sequence, formulation, packaging, and storage environment.

Why do longer peptides cost more to manufacture?

Longer peptides generally require more synthesis cycles and can generate more complex impurity profiles. They may therefore require additional optimization, purification, analytical testing, and processing compared with shorter sequences.

What is a peptide Certificate of Analysis?

A Certificate of Analysis (COA) is a document summarizing analytical testing performed on a production batch. It may include the compound identity, lot number, purity result, identity testing, testing date, analytical methods, and other relevant specifications.

Is research-grade peptide the same as pharmaceutical-grade peptide?

No. Research-grade material is intended for laboratory or analytical research, while pharmaceutical materials are manufactured and controlled under requirements applicable to medicinal products. A research-grade designation should not be interpreted as approval or suitability for human or veterinary administration.

How can I tell if a peptide supplier is reputable?

Researchers should consider manufacturing transparency, batch-specific analytical testing, HPLC purity data, molecular identity testing, Certificates of Analysis, lot traceability, storage documentation, and responsive technical support. Our Complete Peptide Buying Guide provides a detailed supplier-evaluation framework.

---

Final Thoughts

Understanding how peptides are manufactured gives researchers a much clearer picture of what is behind the vial they receive.

The process begins with a precisely defined sequence and proceeds through solid-phase peptide synthesis, cleavage, deprotection, purification, analytical characterization, formulation, packaging, and batch documentation.

Every stage serves a different purpose. SPPS builds the desired sequence. Purification removes unwanted molecular species. HPLC helps characterize chromatographic purity. Mass Spectrometry provides complementary information about molecular identity. Lyophilization can provide a practical dry formulation, while packaging and batch traceability help preserve and document the finished research material.

For researchers, the most important lesson is that peptide quality is a process rather than a single number.

A stated purity percentage is useful, but it becomes substantially more meaningful when accompanied by appropriate analytical methodology, identity confirmation, batch information, and transparent documentation.

Whether you're investigating metabolic biology, mitochondrial function, tissue repair, neuroscience, endocrinology, or another area of peptide science, understanding the manufacturing process can help you make more informed decisions about research materials and improve the documentation and reproducibility of your work.

---

Continue Your Peptide Research

Interested in learning more about peptide science, analytical testing, and research materials? Explore these Diamond Peptides resources:

• What Are Research Peptides? — Learn about peptide structure, biological research applications, and research-grade materials.
• Complete Peptide Buying Guide for Researchers — Learn how to evaluate suppliers, COAs, analytical testing, manufacturing transparency, and batch traceability.
• How to Store Research Peptides — Explore storage, stability, and handling considerations.
• How to Reconstitute Peptides — Review general research handling considerations for lyophilized peptide materials.
• What Is BAC Water? — Learn about bacteriostatic water and its role as a laboratory research material.

---

References & Further Reading

1. Merrifield RB. Solid Phase Peptide Synthesis — PubMed
2. Solid-Phase Peptide Synthesis: From Standard Procedures to the Synthesis of Difficult Sequences — PubMed
3. Solid-Phase Peptide Synthesis Reviews — PubMed
4. Peptide Purification and HPLC Research — PubMed
5. Mass Spectrometry for Peptide Characterization — PubMed
6. FDA Pharmaceutical Quality Resources
7. International Council for Harmonisation — Quality Guidelines
8. United States Pharmacopeia
9. PubMed — U.S. National Library of Medicine

---
